Watts Big Bubba Housing BBH-150 - #PWWJCHSG

Watts Big Bubba Housing BBH-150 - #PWWJCHSG

MSRP: US$925.37
Our Price: US$861.86
You save: $63.51



- or -
Make us an offer for the Watts Big Bubba Housing BBH-150 - #PWWJCHSG

Write a review.

Found a Lower Price?
Request a Price Beat
Free Shipping on Housing BBH-150 - #PWWJCHSG

Special Order Item.
Please contact us for lead time.
Note: Filters sold separately.

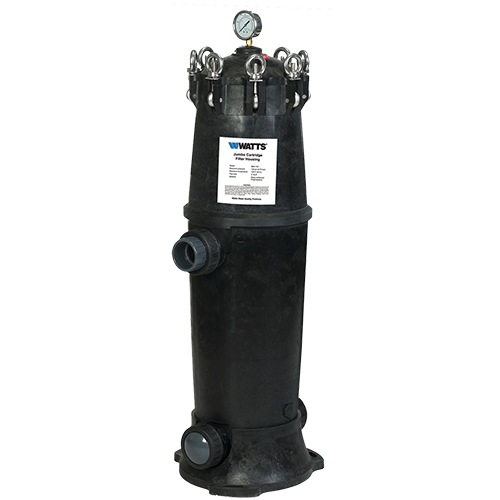

Watts Big Bubba Housing BBH-150 - #PWWJCHSG

  • Description
  • Specifications
  • Available Cartridges
  • Installation / Manual
  • Reviews

Watts Big Bubba filter housings are made of rugged, glass-reinforced polypropylene so they will not chip, rust or dent. All wetted surfaces are non-metallic, so they are ideal when chemical compatibility is an issue or for sea water applications.

They are an economical replacement for stainless steel filtration equipment because of their non-metallic construction and today’s high cost of stainless steel!

Watts® Jumbo Cartridges are ideal for a wide range of applications, including:

  • Whole house filtration
  • Commercial filtration
  • Industrial filtration
  • Pre-filtration for reverse osmosis equipment
  • Community water systems
  • Sea water applications due to their non-corrosive construction
  • Ideal replacement for bag filters
  • A convenient alternative to multiple cartridge filters
  • Water for livestock and poultry

Watts Big Bubba Housing BBH-150 Specifications

Technical Specifications
Part ##PWWJCAC5
Body (all wetted surfaces)Glass reinforced PP
Gauge port1/4" FNPT brass reinforced
Cartridge end capsGlass reinforced PP
O-ringsEPDM (Viton optional)
Pipe fittings2" slip
Overall height42.7"
Width (vessel OD)15.4"
Maximum temperature125°F (52°'C) @ 80 PSI
Maximum working pressure125psi (8.75 bar)

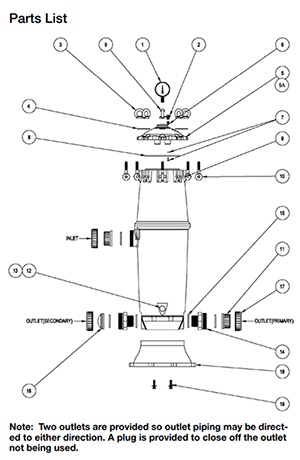

Item #Description
11/4" Pressure Gauge
2, 6 & 7Pressure relief assembly includes cap, spring and stem
2Pressure release button
3Wing Nut
4Washer for lid closure
5Lid with brass reinforced gauge port
5ALid without brass reinforced gauge port
6Pressure relief spring
7Lock pin with O-ring
8O-ring for lid closure, EPDM
9Stud for eye bolt
10Eyebolt
11Adapter 2" PVC
12Drain plug 1/2" NPS without O-ring
13Drain plug O-ring
14Coupler
15Coupler O-ring
16Plug for second outlet
17Nut for plumbing adapter
18Base
19Mounting Bolts

Watts Big Bubba Carbon Cartridge
Model#: BBC-150-ACP
Part#: PWWJCAC5

Watts Big Bubba Carbon Cartridge<br>Model#: BBC-150-ACP<br>Part#: PWWJCAC5<br><br>

MSRP: US$375.94
Our Price: US$313.28
You save: $62.66


- More Info -

Watts Big Bubba Carbon Block Cartridge
Model#: BB-C100

Watts Big Bubba Carbon Block Cartridge<br>Model#: BB-C100<br><br>

MSRP: US$730.94
Our Price: US$609.11
You save: $121.83


- More Info -

Installation Procedures

Install filter housing using the appropriate size pipe. (Pipe fittings are 2" slip). Follow the PVC glue and primer manufacturer’s instructions when making all solvent weld connections. Be sure to install shutoff valves before and after the filter housing and on any drain connections, which are to beinstalled. A 1/4" FNPT port is located on top of the filter's lid, and a pressure gauge has been provided. Locate this gauge (in carton) and install it in gauge port using Teflon tape. A second gauge may be installed; downstream of the filter (in the pipe line) to indicate pressure differential and help you determine when cartridge replacement may be necessary.

Vent and Pressure Gauge

A 1/4" FNPT port and pressure gauge has been installed in the filter's lid to indicate working pressure. A second gauge may be installed, downstream of the filter in the pipe line to indicate pressure differential and help determine when cartridge replacement may be necessary.

Initial Start Up

Once the piping procedures are completed, shutoff valves have been installed and the cartridge has been inserted and locked in place, open outlet completely, start up pump and open inlet valve slowly to check for leaks. If leaks occur, shut off pump, close inlet and outlet valves, release pressure by pressing pressure release button, remove lid and check the O-ring to be sure it is properly seated.

Caution

Do not attempt to remove lid without relieving pressure. To open lid, close shutoff valves before and after filter, press pressure relief button to relieve pressure. Once pressure has been relieved, remove eyebolts and lid. To start up filter, replace lid, tighten eyebolts, and open shutoff valves slowly to check for leaks. If lid O-ring does not seat properly, close shutoff valves, relieve pressure, open lid, apply a small amount of non-petroleum based lubricant to the O-ring to help it seal, reposition O-ring and close lid.

Do not operate filter above 125psi (8.8 bar). In installations where pressure is above 100psi (6.9 bar), install a pressure release valve to release pressure at 125psi (8.8 bar) or less.


Parallel Installation

Parallel installations are recommended to achieve high flow rates, by installing filters on a common manifold, feeding all filters installed in a row.


Series Installation

Series installations are recommended for applications such as surface water filtration, where cartridges having different micron ratings are used.
