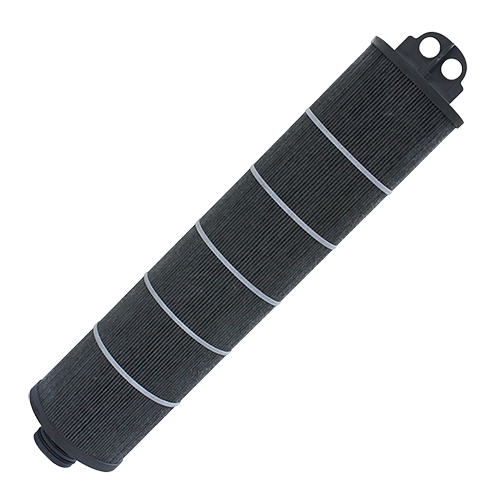

Activated Carbon Cartridge for Watts Big Bubba® Housing
Model #: BBC-150-ACP / PWWJCAC5
Watts Big Bubba Activated Carbon Cartridge - #PWWJCAC5 | List Price: US$ Our Price: US$400.69 You save: $80.14 Write a review. Found a Lower Price? Request a Price Beat |
Special Order Item.
Please contact us for lead time.
- Description
- Specifications
- Related Products
- Installation / Manual
- Reviews
- FAQ
We are pleased to offer a complete selection of replacement cartridges for the Watts Big Bubba high flow housing. Watts Big Bubba activated carbon cartridges are ideal for whole house filtration to reduce chlorine, taste, odors and sediment. PWWJCAC5 active carbon cartridges fit in Watts Big Bubba Filter Cartridge Housing. They offer 90% chlorine reduction and are ideal for whole house treatment up to 15 gpm at 140,000 gallon capacity.
Features
- Dual O-rings for superior sealing
- Greater efficiency with more surface area
- Granular activated carbon filter
- 10 Micron filtration rating
#PWWJCAC5 Activated Carbon Cartridge Specifications
Technical Specifications | |
---|---|
Part # | #PWWJCAC5 |
Model # | #BBC-150-ACP |
Order # | 7100312 |
Media | Activated carbon |
End caps | PP + FG |
Center tubes | Poly Propylene |
Maximum flow rate (GPM) | 15 |
Maximum temperature | 125°F (52°C) |
Maximum°ΔP (psi) | 30 |
Chemical resistance | Not a factor (for water only) |
Length (media) | 26-1/4" |
O-rings (dual) | EPDM |
Shipping weight (lbs.) | 5 |
Carton dimensions | 7" x 7" x 31" |
Micron rating | 10 |
How to install a Watts Jumbo Big Bubba cartridge
- Close inlet valve.
- Close outlet valve.
- Open valve on drain, if a drainpipe has been installed.
- Press pressure relief button to relieve pressure.
- Remove lid after pressure has been relieved.
- Rotate cartridge counterclockwise and pull upward. Remove the cartridge.
- Install new cartridge. Push downward and rotate clockwise to engage locking tabs lubricating O-rings if necessary.
- Check lid O-ring to ensure it is properly seated. Lubricate if necessary.
- Replace lid.
- Replace eyebolts and tighten. (Hand tight is sufficient.)
- Close valve on drain if a drainpipe was installed.
- Open outlet pipe completely.
- Open inlet pipe slowly to check for leaks.
- Vent filter to dispel air by depressing pressure relief button. Be careful when relieving pressure
Watts Big Bubba Activated Carbon Cartridge - #PWWJCAC5 Reviews
There are currently no reviews for this product.
Be the first to write a review.
