Viqua AWP50B-V valve-In-Head 3-Piece Housing Package
Part #: AWP50B-V
Made in Italy, the Viqua AWP50B-V 3-Piece housing is a premium water filter housing designed for residential and light commercial applications (flow rates up to about 15 GPM). For higher flow rate applications, multiple housings can be used in a parallel flow configuration.

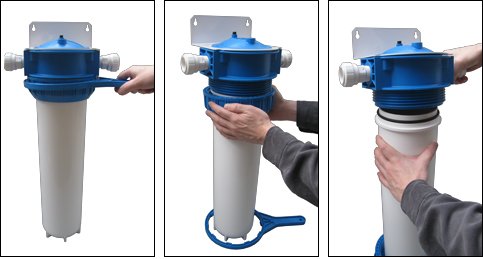

Instead of twisting the filter sump against the filter head to compress the o-ring to obtain a seal (like a conventional housing), the 3-piece configuration of this housing uses a separate collar to twist on to threads on the filter cap. This design greatly reduces wear and tear on the o-ring, decreasing stretching and the risk of o-ring leaks. The large collar is also much easier to remove than traditional designs making filter changes faster and easier.
The valve in head design allows you to turn the water off or engage water bypass while you are changing filters by turning a valve built-in to the top of the housing. This eliminates the need to plumb in shut-off valves before and after the housing, saving installation time and cost.
The sump features a drain port to remove water from the housing before replacing the filter. This reduces water spillage, making filter changes easier and less messy. The housing also comes equipped with a pressure release button and a threaded port that can be used to install a pressure gauge.
Enhancing value even further, all AWP High Flow Series 3-Piece housings come complete with a sturdy powder-coated mounting bracket kit and spanner wrench.
AWP50B-V 3-Piece housings accept standard 4 1/2" diameter x 9.75" inch long (10") filter cartridges.
- unique threaded collar reduces o-ring stress and makes filter changes easier
- "valve-in-head" shut-off / bypass control
- sturdy powder-coated mounting bracket and spanner wrench included
- convenient drain port at bottom of sump
- threaded port for installation of optional pressure gauge (not included)
- made in Italy with top quality reinforced polypropylene and SAN plastic
Note: Housings shown with John Guest brand Speedfit quick connect inlet and outlet fittings - sold separately
