Pentek RO-2550 4-Stage NSF-Validated Reverse Osmosis System

Description, Features & Benefits

Reverse osmosis, also known as nano or ultra-filtration, is the finest home water treatment system available, capable or removing particles as small as 1/1000 of a micron. The Pentek RO-2550 is manufactured by U.S. based Pentair Water, the largest manufacturer of water treatment products in the world. It has been third-party tested and certified by NSF International against NSF/ANSI Standard 58 for the reduction of Barium, Cadmium, Chromium (Hexavalent and Trivalent), Copper, Cysts, Fluoride, Lead, Radium 226/228, Selenium, Turbidity, and Total Dissolved Solids (TDS). Like most reverse osmosis systems, it can also be expected to significantly reduce a wide range of other contaminants as well.

The Pentek RO-2550 reverse osmosis system offers high quality drinking water at a fraction of the cost of bottled water and without the hassle of re-filling bottles. Bottled-water quality drinking water will be right at your fingertips anytime you need it, for drinking, cooking, and more. Its compact size makes it a great choice for use in homes, cottages, recreational properties, and even RVs! The RO-2550 can be easily connected to your fridge ice-maker and water dispenser.

Pentek RO-2550 Features:

• brand name - Pentek is the largest manufacturer of water treatment equipment in the world (based in Milwaukee, WI, USA)
• third-party performance validation (NSF-Standard 58)
• premium quality Thin Film Composite (TFC) reverse osmosis membrane
• high performance sediment & carbon pre and post-filters including 10 micron carbon block pre-filter!
• filtration to 1/1000th of a micron
• easy under-sink installation - space-saving compact design
• low annual maintenance costs
• eliminates the cost & hassle of bottled water
• features automatic shut-off valve when tank is full - doesn't waste water unnecessarily!
• includes treated storage tank (2.8 gallon maximum capacity), long-reach chrome faucet, and all installation hardware
• can easily be connected to fridge icemaker / water dispenser

---

FREE BONUS: Flowlok Leak Protector

The FLOWLOK Leak Detector is an innovative device that installs right below your water filtration system in minutes. No special tools are required and it does not need electricity to operate. FLOWLOK Leak Detectors utilize a highly compressed safety disc that expands when it absorbs water. Once the safety disc has detected water it expands and trips the FLOWLOK safety lever to shut off the water entering the water filtration device. Safety discs are replaceable and are economical.

Specifications & Operating Conditions - Pentek RO-2550

RO-2550 Filters and Specifications
Manufacturer Part #	161079
Stage 1: Sediment Pre-Filter	Pentek P5 - 5 Micron Spun Poly Sediment Filter Replace every 6 months - traps silt/dust, rust and sand that affect the taste and appearance of your water - it also protects the other filters from premature fouling.

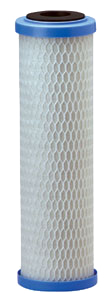

Stage 2: Activated Carbon Block Pre-Filter	Pentek EPM-10 - 10 Micron Coconut Activated Carbon Block Replace every 3-6 months - reduces chlorine (and chlorine bi-products), bad tastes, odors, and more.
Stage 3: Reverse Osmosis Membrane	Pentek TLC-50 (GE TFM-50) Thin Film Composite (TFC) Replace every 18-24 months
Stage 4: Activated Carbon Post Filter	Pentek GS-10RO - Granular Activated Carbon Post-Filter Replace every 12 months - enhances clarity and taste of your water to ensure the ultimate level of quality is attained.
Size:	13 1/2" wide x 5 1/2" deep x 17 1/4" high; 17.3 lbs
Storage Tank:	2.8 gallon max. capacity depending on water pressure Approx. Size: (diameter: 9 inches; height: 13.5 inches)
Output / Production:	Testing by NSF International according to NSF/ANSI Standard 58 yielded 15.04 gallons per day with source water test parameters of 50 PSI pressure input, water temperature of 77F, pH of 7.5 +/- 0.5, and 750 ppm total dissolved solids (TDS). Higher production rates are expected with lower TDS levels. Lower production rates can be expected at colder incoming water temperatures.
Self-Cleaning:	The RO-2550 system uses a process of crossflow to constantly clean the membrane to prevent pre-mature fouling and clogging.

For more information of the removal/reduction of various contaminants by carbon filtration and reverse osmosis, please CLICK HERE.

This system is designed for use on all chlorinated and non-chlorinated potable water supplies. It is an excellent choice for most homes. If you do not receive your water from a municipal water system (you get your water from a well, lake or other non-treated source), you should have your water tested to ensure it is biologically safe (free of bacteria, viruses, and other harmful microorganisms) before using a reverse osmosis filter as your only water treatment. If your water is biologically contaminated, you should consider a point-of-use or whole-house ultraviolet purifier in addition to your reverse osmosis unit to kill any remaining microorganisms. Recommended Source Water Parameters: Pressure: 40-100 PSI (2.7-6.9 bar) Temperature: 40-100F (4-38C) pH: 3-11 TDS Level: less than 2000 ppm (mg/L) Turbidity: less than 11.0 NTU Hardness(CaCO3):<10 GPG (170 mg/L) Iron (Fe): <0.1 ppm (mg/L) Manganese (Mn): <0.05 ppm (mg/L) Hydrogen Sulfide (H2S): 0.01 ppm (mg/L) Residual Chlorine: <2.0 ppm (mg/L)

Average Reduction for Various Contaminants under NSF/ANSI Standard 58 Testing: Barium 98.3% Cadmium 98.7% Chromium (Hexavalent) 91.2% Chromium (Trivalent) 94.8% Copper 98.9% Fluoride 95.6% Lead 98.7% Radium 226/228 80.0% Selenium 96.0% Turbidity 99.0% Total Dissolved Solids (TDS) 96.2% Cysts 99.99%

Replacement Parts and Popular Accessories

Pentek RO-2550 Reverse Osmosis System Installation, Manuals & Resources

The filtration unit and storage tank mount under your sink, out of sight. Water supply is gained by attaching a simple adapter to your cold water supply pipe (copper or plastic). You will have to drill a hole in your countertop or sink frame to attach the attractive long-reach faucet. It is a relatively easy do-it-yourself project, or if you prefer, you can have it installed by a handyman or plumber. The unit includes all installation hardware and a complete installation guide.

Pentek RO-2550 Reverse Osmosis System (#161079) Reviews

There are currently no reviews for this product.
Be the first to write a review.

Pentek RO-2550 Manufacturer's Warranty

Pentair Residential Filtration warrants to the original owner (under normal use) to be free from defects in material and/or workmanship for one (1) year from the date of purchase.
