Pentek ST Series Stainless Steel Housings and Accessories
ideal for high temperature and high pressure applications
![Pentek ST Series Stainless Steel Housings](/images/ST-Group.png)
Pentek ST Series Stainless Steel Filter Housings effectively provide heavy duty filtration for smaller filtration systems and point-of-use applications. Supplying flow rates of up to 20 gpm (76 Lpm), at a maximum water temperature of 300F (149C), ST Series Housings are ideal for hot water and high-pressure applications that are not appropriate for plastic housings.
The brushed 304 stainless steel sumps are available with either a pipe plug or petcock in the bottom for draining. Heads are manufactured from nickel-plated cast-brass. ST Series Housings are easy to install and maintain. They are compatible with a wide range of filter cartridges, adding to their versatility.
Available in 10, 20 and 30 inch lengths (3/4 inch inlet/outlet).
- brushed 304 stainless steel sump
- nickel-plated brass head
- rated to a maximum pressure of 250 PSI (17.2 bar)
- rated to a maximum water temperature of 300F (149C)
NOTE: Maximum cartridge diameter is 3" (76 mm). Will not accept GAC, CC, CGAC, TSGAC, WS, PCF or PCC Series cartridges. Not recommended for applications with
TDS or chlorides >1000 ppm and/or pH <5.0. Use of this product in these conditions will void the warranty.
10" for up to 10 GPM
Part# 156017-02
![Pentek ST-1 Stainless Steel Housing<br>10" for up to 10 GPM](/images/ST-1.png)
US$268.16
- More Info -
20" for up to 15 GPM
Part# 156018-02
![Pentek ST-2 Stainless Steel Housing<br>20" for up to 15 GPM](/images/ST-2.png)
US$474.77
- More Info -
30" for up to 20 GPM
Part# 156019-02
![Pentek ST-3 Stainless Steel Housing<br>30" for up to 20 GPM](/images/ST-3.png)
US$456.43
- More Info -

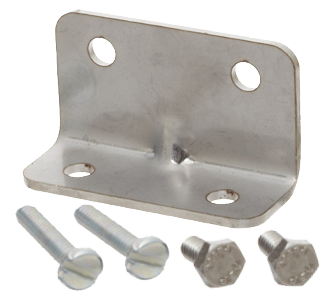

Part# 156037
![Pentek Mounting Bracket Kit for ST-1, ST-2, & ST-3](/images/ST-bracket-156037.png)
US$25.20
- More Info -
Part# 143216
![Pentek Gasket (O-Ring) for ST-1, ST-2, and ST-3 Housings](/images/ST-gasket-large.png)
US$18.64
- More Info -
