Enpress CT-10x5 Pleated Sediment Filter - 5 Micron

dual gradient, double pleated 5 micron filter for Enpress ONE Cartridge Tank systems

Enpress CT-10x5 ONE Cartridge
Pleated, Dual Gradient 10/5 Micron
Orange Series

MSRP: US$275.00
Our Price: US$179.00
You save: $96.00



()

Write a review.

Found a Lower Price?
Request a Price Beat
Free Shipping on CT-10x5 ONE Cartridge <br>Pleated, Dual Gradient 10/5 Micron <br> Orange Series
Lowest Price Guaranteed on the Enpress CT-10x5 ONE Cartridge <br>Pleated, Dual Gradient 10/5 Micron <br> Orange Series

Lowest Price Guaranteed!

If you find a lower price on this product call us or Click here to request a price beat.

Alternative Part Numbers:
Enpress CT-10x5
Nelsen NFS-PL10/5-HF
Watts SCT-1005
US Water Systems 351-CT-10X05
Hellenbrand 109696

Enpress CT-10x5 ONE Cartridge <br>Pleated, Dual Gradient 10/5 Micron <br> Orange Series

Enpress One Orange Series

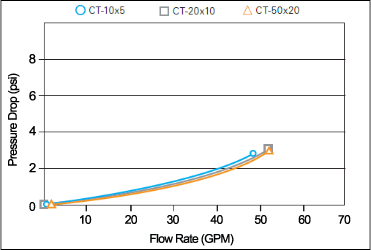

The CT-10x5 is a dual gradient double pleated filter designed for extended life and use, with a filtration level of 5 microns (nominal). Like other Orange Series cartridges, this filter features two distinct pleated layers, a 10 micron outer layer and a 5 micron inner layer. This structure, combined with a surface area of approximately 100 square feet, provides a greatly improved service life while achieving high flow rates with low pressure drop. The CT-10x5 is recommended for flow rates up to 50 GPM. See the pressure drop vs. flow rate chart for expected pressure loss at various flow rates.

Each filter comes with top cap with built-in handle for lightweight and easy removal, a bag for proper sanitary disposal, and a double o-ring bottom seal to prevent filter bypass.

The Enpress CT-10x5 cartridge is designed specifically for Enpress ONE Cartridge Tank filter systems with 1.25 inch inlet/outlet. The Enpress ONE Cartridge Tank is marketed under a variety of other brand names and part numbers, including: Watts SCT-125; US Filter Systems 350-ONE-CT-125; Hellenbrand 109710, and Nelsen NFS-HF. This cartridge is compatible with all of these systems that have a 1.25 inch inlet/outlet.

Features and Benefits:

  • Dual gradient, double pleated filters for improved service life, contaminant removal, and dirt holding capacity
  • Huge surface area to promote high flow rates, low pressure loss, and reduced cartridge replacement frequency
  • Double Buna-N o-ring seals to ensure no bypass of contaminants and high chemical compatibility
  • Filter belly bands prevent collapsing of filters under high flow or contaminant load applications
  • Durable polyester filter and polypropylene cap construction for superior bacteria and chemical resistance
Specifications
Filter Type: Dual-Gradient, Pleated
Micron Rating: 10 Micron Outer / 5 Micron Inner
Max. Recommended Flow Rate: 50 GPM (189 LPM)
Filter Material: Polyester
End Cap Material: Polypropylene
O-Ring Material: Buna-N
Max Pressure (Feed): 150 psi (<90 psi recommended)
Surface Area: Approx. 100 Sq. Ft.
