Harmsco HSB Single Bag Housings
Very similar in function to the larger HMB series, the HSB is also designed to employ the use of bag filters. However, HSB housings only use a single bag filter and are better suited for smaller applications than the HMB. The HSB series offers an effective solution for filtration needs ranging from 90 to 200 GPM. This housing's options allow one to choose between 304 or 316 stainless steel, bead blasted or electropolished finish, and FNTP, flange, or BSTP connections for both models. ASME code u-stamp is an optional addition for this line as well.

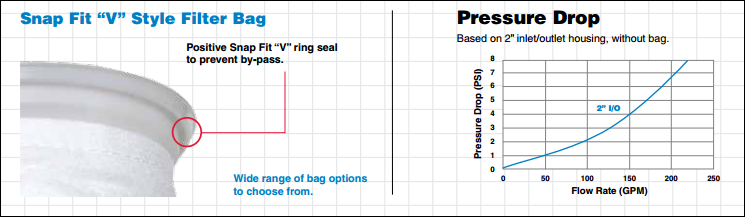

A chosen housing for solvents, process water, and lubricants (among many other applications), this bead blasted line also features three adjustable mounting legs and Snap Fit "V" style filter bags.
- durable stainless steel construction
- used in industrial settings
- flow rates from 90 GPM to 200 GPM
- available in either 304 or 316 stainless steel
- housings can function to a maximum of 250 F (121 C)
- rated to a maximum pressure of 150 psi
|Model||Height||Width||Inlet/Outlet||Flow Rate||Bag Size||Basket Depth||Lowest Price
|36-1/4"||11-3/4"||2" FNTP||Up to 90 GPM (341 LPM)||#1 Snap Fit||15"|
|47"||11-3/4"||2" FNTP||Up to 200 GPM (757 LPM)||#2 Snap Fit||30"|
