Trojan UVMax Model A


Trojan UVMax Model A

The Trojan UVMax Model A has been replaced by the
Viqua S2Q-PA UV Sterilizer
which features:

Longer Warranty
Higher Flow Rate

- Click here for more info -

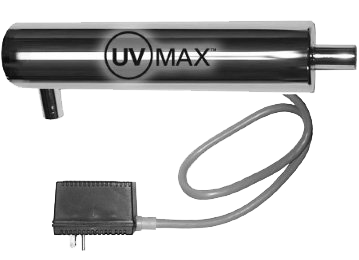

Viqua (Trojan) UVMax Model A

This item has been discontinued by the manufacturer. It has been replaced by the Viqua S2Q-PA, which offers a Longer Warranty and a Higher Flow Rate.

Replacement parts for the Trojan UVMax Model A are available at the bottom of this page.

The Viqua (Trojan) UVMax Model A is designed for point-of-use water sterilization at a single faucet where only low flow rates (generally under 3 gallons per minute) are expected. It is well suited for point-of-use applications in rural homes or cottages which obtain their water supply from a well, lake, or stream. The Viqua (Trojan) UVMax Model A includes a basic range of popular features. The Viqua (Trojan) UVMax Model A is an excellent choice for economical point-of-use / single faucet water sterilization to kill bacteria, viruses, and waterborne cysts like cryptosporidium and giardia.

UVMax Manual

UVMax Brochure
UVMax Model A Specifications
Application point-of-use
Maximum Flow Rate
2 GPM (7 LPM)
Maximum Flow Rate
1 GPM (4 LPM)
Audible/Visual Lamp
Failure Alarm
Flow Restrictor optional
Water Chamber Material stainless
steel (304)
UV Sleeve Material quartz
Inlet/Oulet 3/8 inch FNPT
Electrical 120v, 60HZ
Lamp Power (watts) 25
Lamp Length 12"
Chamber Assembly Size 15.5 x 2.5"
39 x 6.5cm
Control Module Size 2.8 x 3.3 x 2.3"
7 x 8 x 6 cm

* We recommend a UV dose of 40 mJ/cm2 or greater. Flow rate recommendations are based on 95% UV transmittance (UVT) and after 9,000 hours of bulb operation.

Feed Water Quality Parameters
Iron 0.3 ppm
(0.3 mg/L)
Hardness 120 ppm
(7 grains / gallon)
UV Transmittance (UVT): 75%
Maximum Temperature: 86F (30C)
Maximum Pressure: 125 psi

Options, Accessories and Replacement Parts

Sediment Prefilter Package <br>5 Micron - WH1B+

Sediment Prefilter Package
5 Micron - WH1B+

MSRP: US$106.54
Our Price: US$89.95
You save: $16.59

- More Info -
Replacement Lamp <br>Part#:602803

Replacement Lamp

MSRP: US$110.00
Our Price: US$79.00
You save: $31

- More Info -
Replacement Sleeve <br>Part#:602730

Replacement Sleeve

MSRP: US$52.00
Our Price: US$39.00
You save: $13

- More Info -
Viqua 1.5 GPM Flow <br>Restrictor (adapter required)

Viqua 1.5 GPM Flow
Restrictor (adapter required)

MSRP: US$80.00
Our Price: US$39.00
You save: $41

- More Info -
UVMax Model A<br>Replacement Ballast

UVMax Model A
Replacement Ballast

MSRP: US$163.00
Our Price: US$129.00
You save: $34

- More Info -
