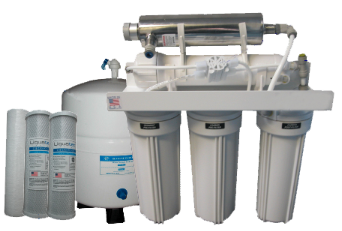

ClearPlus (Reo-Pure) Premium 5-Stage
Reverse Osmosis System with UV Sterilizer

ClearPlus Premium 5-Stage <br>Reverse Osmosis System with UV

Discontinued

ClearPlus Premium 5-Stage
Reverse Osmosis System with UV

The ClearPlus Premium 5-Stage
Reverse Osmosis System with UV has been discontinued. For an alternative product please see the ClearPlus Premium 4-Stage Reverse Osmosis.

economical but high quality under sink RO system with NSF validated components and ultraviolet light (UV) sterilizer for greater protection against bacteria, viruses and other microbiological contaminants - great choice for treating well water and surface water

Model: CP-5TFC50UVGPD, Part #9055045

The ClearPlus premium 5-stage reverse osmosis system combines the nano-filtration of a quality 50 gallon per day Thin Film Composite (TFC) reverse osmosis membrane by Filmtec with an anti-microbial UV sterilizer by Sterilight). Filmtec and Sterilight are industry-leaders in their respective fields - ClearPlus brings these two water treatment specialists together to create one of the best performing and most affordable high-end reverse osmosis systems available anywhere. This system is highly recommended for households with an untreated water supply such as a well, lake, stream, cistern, etc.

Key Features:

  • premium quality 50 gallon per day Thin Film Composite (TFC) reverse osmosis membrane
  • Sterilight(tm) high-dose UV sterilizer
  • high performance Liquatec sediment & carbon pre and post-filters
  • easy under-sink installation
  • low annual maintenance costs
  • eliminates the cost & hassle of bottled water
  • space-saving compact design
  • double o-ring design on pre-filter housings
  • approx. 0.0005 micron nominal filtration!
  • features automatic shut-off valve when tank is full - doesn't waste water unnecessarily!
  • includes 3.2 gallon storage tank and chrome long-reach faucet
  • can easily be connected to fridge icemaker / water dispenser

Like all of our reverse osmosis systems, the ClearPlus 5-stage reverse osmosis water filter system with UV sterilizer offers premium quality drinking water at a fraction of the cost of bottled water and without the hassle of re-filling bottles. Bottled-water quality drinking water will be right at your fingertips anytime you need it, for drinking, cooking, and more. Its compact size makes it a great choice for use in homes, cottages, recreational properties, and RVs!

All ClearPlus reverse osmosis systems include a quality 50 gallon per day Thin Film Composite (TFC) reverse osmosis membrane, sediment pre-filter, both pre and post carbon filters, a chrome-plated long-reach faucet, automatic shut-off, and a quality 3.2 gallon storage tank. Moreover, ClearPlus is assembled in the USA with the highest quality components. The Sterilight UV sterilizer is made in Canada.

Like other reverse osmosis systems, The ClearPlus multi-stage reverse osmosis system operates on the principal of osmosis (diffusion) of water through a semi-permeable membrane using ordinary household water line pressure (recommended pressure of 35 to 100 psi - the average residential home has a pressure of about 60 psi) - an optional RO booster pump is recommended if your water pressure is below 35-40 psi. The microscopic pores in the Thin Film Composite membrane (TFC) only allow pure water to pass through to your drinking water. The vast majority of contaminants are too large to pass through the membrane. A continuous self-cleaning process called "crossflow" keeps the RO membrane from fouling pre-maturely by washing contaminants away from the membrane and down the drain. For more information on reverse osmosis technology, CLICK HERE.

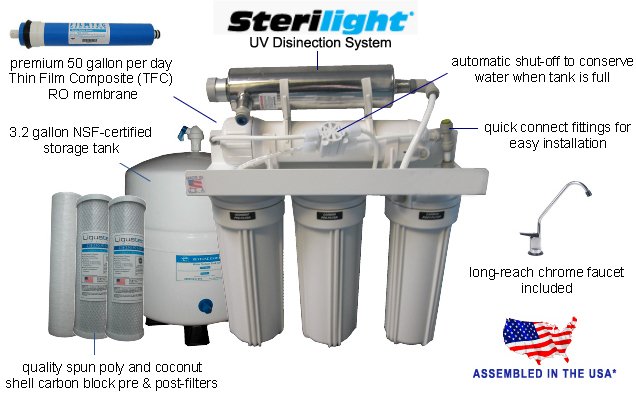

ClearPlus Reverse Osmosis System with UV sterilizer

* Assembled in the USA. Note: system components are manufactured in several countries including the USA, Canada, and Taiwan,
and are sourced from reputable suppliers with a commitment to quality and safety, including:
- UV Sterilizer - Made in Canada (Sterilight)
- Storage Tank - Made in Taiwan - NSF certified to standard 58 for material and structural integrity
- Faucet - Made in Taiwan - NSF certified to standard 61 (materials designed for contact with potable water)

ClearPlus 5-Stage RO System with UV, Filters and Specifications
Stage 1: Sediment Pre-Filter Hydronix SDC-25-1005
5 Micron Spun Poly

Replace every 3-6 months
- traps silt/dust, rust and sand that affect the taste and appearance of your water - it also protects the other filters from premature fouling.
Stage 2: Activated Carbon Block Pre-Filter Hydronix CB-25-1010
10 Micron Coconut Activated Carbon Block

Replace every 3-6 months
- reduces chlorine (and chlorine bi-products), bad tastes, odors, and most fungicides, pesticides, volatile organic compounds, and more.
Stage 3: Reverse Osmosis Membrane Filmtec TW30-1812-50
50 Gallon Per Day Thin Film Composite (TFC)

Replace every 2-3 years
- This is the primary component of the system. The TFC membrane separates up to 99%+ of most remaining unwanted impurities from your water, including bacteria, chlorine, trihalomethanes, E.Coli, giardia, cryptosporidium, nitrates, fluoride, heavy metals, inorganic minerals, and more.
Stage 4: Activated Carbon Block Pre-Filter Hydronix CB-25-1010
10 Micron Coconut Activated Carbon Block

Replace every 12 months
- reduces chlorine (and chlorine bi-products), bad tastes, odors, and most fungicides, pesticides, volatile organic compounds, and more.
Stage 5:UV Sterilizer Sterilight SC1 Copper Series UV Sterilizer
kills bacteria including coliform and E.coli, as well as viruses, yeasts, mold spores, and oocysts such as cryptosporidium or giardia that may have escaped through the RO membrane.
Sterilight Owner's Manual
Storage Tank 3.2 gallons
Approx. Size: (diameter: 11 inches; height: 15 inches - height includes shut-off valve)
Output / Production Approximately 50 gallons per day based on average residential water pressure and feed water conditions.
Self-Cleaning Like all high quality reverse osmosis systems, the ClearPlus RO system uses a process of crossflow to constantly clean the membrane to prevent pre-mature fouling and clogging. ClearChoice RO features a very low waste water ratio of approximately 3:1 while maintaining excellent cross-flow cleaning capabilities.

For more information of the removal/reduction of various contaminants by carbon filtration and reverse osmosis, please CLICK HERE.

This system is designed for use on all chlorinated and non-chlorinated potable water supplies. It is an excellent choice for most homes. If you do not receive your water from a municipal water system (you get your water from a well, lake or other non-treated source), you should have your water tested to ensure it is biologically safe (free of bacteria, viruses, and other harmful microorganisms) before using a reverse osmosis filter as your only water treatment. If your water is biologically contaminated, you should consider a whole-house ultraviolet purifier in addition to your reverse osmosis unit to kill any remaining microorganisms.

Recommended Source Water Parameters and Operating Conditions:

TDS Level: less than 2000 mg/L
Turbidity: less than 1.0 NTU
Hardness(CaCO3): <350 mg/L
Iron (Fe): <0.1 mg/L
Manganese (Mn): <0.05 mg/L
Hydrogen Sulfide (H2S): 0.00 mg/L
Residual Chlorine: <2.0 mg/L
Maximum Pressure: 100 psi
Minimum Pressure: 35-40 psi
Water Temperature: 40-100F
pH: 3.0 to 11.0.

We are proud to use Filmtec TW30-1812-50 membranes in our ClearPlus RO systems. These membranes are tested and certified by NSF to ANSI/NSF Component Standard 58 for the reduction of turbidity, pentavalent arsenic, barium, cadmium, trivalent and pentavalent chromium, copper, fluoride, lead, radium 226/228, and selenium.

Approximate Size of System:

Filtration Unit: 18 inches long, 6 inches wide (deep), 17 to 19 inches high depending on position of the UV sterilizer
Storage Tank: 11 inches in diameter, 15 inches high including shut-off valve

Installation:

The filtration unit and storage tank mount under your sink, out of sight. Water supply is gained by attaching a simple saddle valve to your cold water supply pipe (copper or plastic). You will have to drill a hole in your countertop or sink frame to attach the attractive stainless chrome-plated long-reach faucet. It is a relatively easy do-it-yourself project, or if you prefer, you can have it installed by a handyman or plumber. The unit includes all installation hardware and a complete installation guide.

5 stage RO installation manual
Owner's Manual

Warranty:

Our ClearPlus RO water filter systems are backed by a 100% 2-year limited parts replacement warranty against manufacturing and workmanship defects, including the housings, storage tank, faucet, fittings, and O-rings (excluding filters), subject to the feed water conditions noted above. Most competitors only offer a 1 year warranty! The manufacturer of the Sterilight UV Sterilizer warrants the ultraviolet disinfection system hardware and electrical systems to be free from defects in material and workmanship for a period of five (5) years from the date of purchase by the original owner (consumer) on a pro-rated basis. The manufacturer warrants the ultraviolet lamps to be free from defects in material and workmanship for a period of one (1) year, and the reactor chamber for a period of seven (7) years. The warrantor will at its option and expense, either repair or replace such units subject certain conditions, exceptions, and exclusions (see owner's manual). For health reasons, we do not accept returns of water filters/systems after they have been installed. If you are in doubt as to which filter is best for your needs, please feel free to call us toll free at 1-866-376-2690.

Replacement Filters, Parts & Accessories:

Hydronix SDC-25-1005
Sediment Pre-Filter
Single Filter

Hydronix SDC-25-1005 <br>Sediment Pre-Filter<br>Single Filter

MSRP: US$2.52
Our Price: US$2.49
You save: $0.03


- More Info -

Hydronix CB-25-1010
Carbon Block Filter
Single Filter

Hydronix CB-25-1010 <br>Carbon Block Filter<br>Single Filter

MSRP: US$8.71
Our Price: US$6.75
You save: $1.96


- More Info -

Hydronix TW30-1812-50
50 Gallon per Day Reverse
Osmosis Membrane

Hydronix TW30-1812-50 <br>50 Gallon per Day Reverse<br>Osmosis Membrane

MSRP: US$49.45
Our Price: US$27.49
You save: $21.96


- More Info -

Sterilight S212RL
Replacement UV Lamp

Sterilight S212RL <br>Replacement UV Lamp<br><br>

MSRP: US$104.00
Our Price: US$88.00
You save: $16.00


- More Info -

Sterilight QS-212D
Replacement UV Sleeve

Sterilight QS-212D <br>Replacement UV Sleeve

MSRP: US$62.00
Our Price: US$53.00
You save: $9.00


- More Info -

Note: this product is not available in the State of California. CLICK HERE for more information.

Note: The contaminants or other substances removed or reduced by this water treatment device are not necessarily present in your water.
