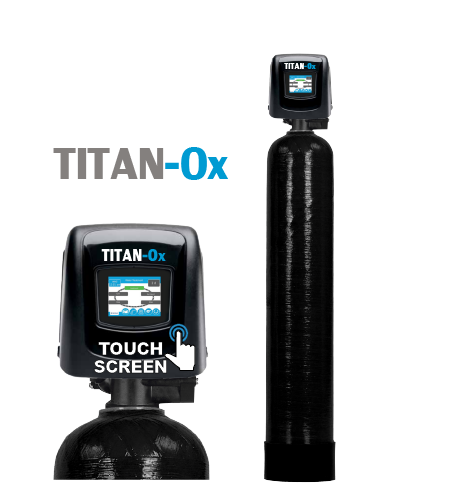

Titan-Ox™ Ultimate Series Arsenic
& Heavy Metal Reduction Filters
highly effective and economical treatment for the removal of arsenic, uranium, lead, and other heavy metals, featuring Fleck 5810XTR2 premium control valve with touch screen and flow meter
Titan-Ox™ Ultimate Series MetSorb Arsenic
Factory Direct Savings!!!
- Description & Benefits
- How It Works
- Compare Models
- Install / Manuals
Description & Benefits
Titan-Ox™ Ultimate Series arsenic and heavy metal reduction filters are designed specifically to remove arsenic (arsenic III and arsenic V) and a variety of heavy metals including lead, cadmium, copper, chromium +6, selenium, antimony, mercury, and zinc from water. They are also frequently used to remove uranium.

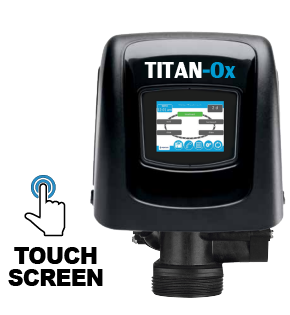

Titan-Ox™ Ultimate Series filters feature the professional-grade Fleck 5810 XTR2 digital control valve with touch-screen and flow meter. Using the system's built-in water meter, you can view data about your daily water consumption, and track peak flow rates as well as the the total volume of water treated so you can monitor media life.
- Premium brand-name digital control valve (Fleck 5810XTR2) with simple programming and operation
- Full color touch-screen user interface
- Optional meter-based (water volume) backwash
- Water consumption data-logging to help you track your water use
- Water leak detection alarm
- Out-performs all other arsenic reduction media
- Removes both trivalent and pentavalent arsenic
- Concurrent removal of wide range of heavy metals and uranium
- Cost-effective and long-lasting media (>7 years in most applications)
- Simple, automated periodic backwash keeps the media clean and operating efficiently
- Simple operation with no day-to-day maintenance
- Free arsenic monitoring test kit included with every system!
- Great warranty (5 years on control valve, 10 years on treatment tank)
- Bypass included
- trivalent and pentavalent arsenic
- heavy metals including lead
- no filter cartridges to replace
- long-life media
- fully automated periodic backwash
- top rated treatment media
- 5 year control valve warranty
- 10 year treatment tank warranty
Titan-Ox™ Ultimate Series systems are designed to backwash periodically to eject trapped sediment and particulates and to eliminate media channeling which could reduce the performance of your system. Accordingly, the control valve is connected to a drain and the backwash water together with the rejected contaminants are simply discharged to the drain during the backwash process. The backwash is controlled by the Fleck 5810 XTR2 premium-grade digital control valve and is generally programmed to occur in the middle of the night (fully adjustable) when you are not likely to be using any water. In a typical residential application, the MetSorb media should be replaced roughly every 7 years to maintain optimal performance. Our Certified Water Technicians can give you specific guidance related to the expected media life for your specific application based on your water chemistry.

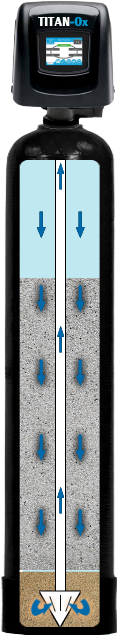

How Titan-Ox™ Ultimate Works
The Titan-Ox™ Ultimate system consists of a treatment tank, premium-grade backwash control valve, and a highly specialized media called MetSorb HMRG which adsorbs both pentavalent (Arsenic V / Arsenic 5 / Arsenate) and trivalent (Arsenic III / Arsenic 3 / Arsenite) forms of arsenic, as well as a wide range of heavy metals from water. The active ingredient in the MetSorb media is titanium dioxide. Similar to other metal oxide media, MetSorb reduces arsenic and heavy metals by permanently adsorbing them (binding them to the media). Adsorption efficiently reduces arsenic and heavy metals in a wide variety of water conditions, however, higher removal rates will generally occur at lower pH levels.
MetSorb Media - the heart of our Titan-Ox™ Ultimate systems...
- minimal backwash requirements reduces water waste
- will not "dump" arsenic upon media exhaustion
- spent media meets requirements for non-hazardous landfill disposal
- does not require chemical regeneration
- low cost per gallon treated - long media life in most applications
- less affected by competing ions than competitive technologies
- made in the U.S.A.
Independent testing consistently ranks MetSorb as a leading media for the removal of arsenic. It has a higher capacity and a lower level of ion interference than competitive iron and alumina based media. MetSorb's extremely fast kinetics allow highly effective removal with contact times of only 1.5 to 3 minutes.
Titan-Ox™ Ultimate Series systems are programmed to backwash periodically to ensure that the media bed is not subject to channeling which could reduce its effectiveness. The backwash will also remove any particulate matter trapped in the media. The backwash process is controlled automatically by the digital control valve included with the system. The valve is pre-programmed with the correct backwash interval for you. Once Titan-Ox™ is set-up, it is a very low maintenance treatment system. The backwash will only run for 10 minutes every 2-3 weeks. It is programmed to occur at night when water is not being used. Since the arsenic and heavy metals are permanently bound to the media, the backwash discharge does not contain concentrated contaminant levels. Accordingly, the discharge water can be sent to sanitary septic/sewer systems without concern. Similarly, since the arsenic is permanently adsorbed, spent media is landfill safe. To verify safe disposal, spent media has passed TCLP (Toxicity Characteristic Leaching Procedure) testing.
MetSorb has a large, but finite capacity to adsorb contaminants and eventually needs to be replaced. The life of the media bed depends on several factors including arsenic level, heavy metal levels, water usage, and water chemistry. Certain contaminants reduce the life and effectiveness of MetSorb media. Iron and manganese should be reduced to less than 0.3 mg/l and 0.05 mg/l, respectively, through appropriate pre-treatment to maximize media life. pH should not exceed 8.3. Elevated levels of silica and/or sulfate may reduce media life depending on other water chemistry conditions (particularly if the water is soft). If proper pre-treatment for iron and manganese is undertaken (if necessary), media lifespan of 7 to 12 years, or even longer, is very common. Our staff would be pleased to assist you in estimating the expected life of the media in your Titan-Ox™ Ultimate system - please call us toll free at 1-866-376-2690 to discuss.
Using the system's built-in water meter, you can view data about your daily water consumption, and track peak flow rates as well as the the total volume of water treated so you can monitor media life.
Given the potential seriousness of arsenic and heavy metal contamination of drinking water, follow-up water testing after installation and on at least a quarterly basis thereafter is recommended to monitor for breakthrough. We supply a free basic monitoring test kit with each system that will enable you to do your initial follow-up testing. Additional test kits can be purchased separately.
For arsenic levels exceeding 60 parts per billion or 0.060 mg/l, a lead/lag configuration may be recommended depending on your water chemistry. Please discuss with one of our certified water treatment technicians by calling toll-free 1-866-376-2690.
Compare Available Models
Specifications & Operating Conditions
|Home Size:||Small Cabin||1 - 3
|3 - 4
|Tank Diameter (Inches):||10||12||13||14|
|Total Height (Inches):||66||64||66||77|
|Approx. Installation Space Required (W x D x H"):||10 x 12 x 66||12 x 12 x 64||13 x 13 x 66||14 x 14 x 77|
|MetSorb Volume (Cubic Feet):||1.5||2.0||2.5||3.0|
|Optimal Service Flow Rate (GPM)*:||2.7||3.9||4.6||5.3|
|Typical Service Flow Rate (GPM):||4.4||6.3||7.4||8.6|
|Max. Service Flow Rate (GPM):||5.5||7.9||9.2||10.7||Backwash Flow Rate @ 40F (GPM):||4.5||7.0||8.0||9.0||Backwash Flow Rate @ 70F (GPM):||6.0||8.0||10.0||12.0|
|Maximum Arsenic Level:||A single system can generally treat up to 60 parts per billion (ppb) or 0.06 mg/l - For applications exceeding this level, a lead/lag configuration is generally recommended - please contact us at 1-866-376-2690 for recommendations.|
|Titan-Ox™ Ultimate Specifications & Operating Conditions:|
|Control Valve:||Fleck 5810 XTR2|
|Inlet/Outlet Connections:||1" MNPT|
|Drain Connection:||3/4" MNPT|
|Operating Temperature:||36F to 100F (2 to 38C)|
|Operating Pressure:||20 to 90 psi (1.4 to 6.2 bar)|
|Maximum Iron:||0.3 ppm (mg/l)|
|Maximum Manganese:||<0.05 ppm (mg/l)|
|Maximum Arsenic:||lead/lag configuration may be required |
where total arsenic > 60 ppb (0.060 mg/l)**
|Replacement Media:||MetSorb HMRG|
|Typical Media Life:||7 to 12 Years*|
*MetSorb has a large, but finite capacity to adsorb contaminants and eventually needs to be replaced. The life of the media bed depends on several factors including arsenic level, heavy metal levels, water usage, and water chemistry. Certain contaminants reduce the life and effectiveness of MetSorb media. Iron and manganese should be reduced to less than 0.3 mg/l and 0.05 mg/l, respectively, through appropriate pre-treatment to maximize media life. pH should not exceed 8.3. Elevated levels of silica and/or sulfate may reduce media life depending on other water chemistry conditions (particularly if the water is soft). If proper pre-treatment for iron and manganese is undertaken (if necessary), media lifespan of 7 to 12 years, or even longer, is very common. Our staff would be pleased to assist you in estimating the expected life of the media in your Titan-Ox™ system - please call us toll free at 1-866-376-2690 to discuss.
**If your total arsenic level is greater than 60 parts per billion (0.060 mg/l), please contact one of our certified water technicians for sizing assistance (phone toll free 1-866-376-2690). A lead/lag configuration or larger media volume may be required for desired treatment.
Installation / Manuals
We have designed our Titan-Ox™ Ultimate systems for ease of installation. We provide a bypass valve with each system. The bypass valve has male 1" NPT threaded fittings. If your pipe diameter is different, you can connect to the bypass with simple adapters available at any hardware store. The drain line connection is female 1/2" NPT.
Titan-Ox™ Ultimate is normally installed after treatment for iron, manganese, hydrogen sulfide, tannin and sediment (if applicable), but before any disinfection equipment such as a UV sterilizer or chlorinator (if applicable). Please contact us to discuss the location of your Titan-Ox™ Ultimate system relative to your water softener if you have one.
We recommend that Titan-Ox™ Ultimate systems be installed by a licensed plumber, however, your warranty is valid as long as your system is installed in accordance with local plumbing codes and the Owner's Manual.
Only the best components go into our Titan-Ox™ Ultimate water treatment systems. They are sourced from some of the leading manufacturers in the business, and assembled at our factory in Canada. You can be assured that only the finest materials have gone into the manufacture of all Titan-Ox™ Ultimate systems and that the materials used are safe for potable water contact. The following is a list of key system components:
|Item||Manufacturer||Material Safety Validations|
|Valve & Bypass Assembly||Pentair PLC
Milwaukee, WI, USA
Made in USA
|NSF/ANSI Standard 44
NSF/ANSI Standard 372
|Media Tank||Pentair PLC
Milwaukee, WI, USA
Made in USA
|NSF/ANSI Standard 42|
|MetSorb Media||Graver Technologies LLC
Glasgow, DE, USA
Made in USA
|NSF/ANSI Standard 61|
Titan-Ox™ Ultimate systems are backed by a comprehensive warranty program.
Subject to the limitations noted below, Titan-Ox™ Ultimate system components are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for the following periods:
Fleck 5810 XTR2 Control Valve: 5 Years*
Media Tank: 10 Years
All Other Components (except as noted**): 1 Year
*Note: Piston seals are considered a wear and tear item and require regularly scheduled maintenance and replacement, usually every 3-5 years. They are warranted for a period of 1 year.
**Note: Due to the wide variety of potential feed water conditions, there is no warranty on the MetSorb media or underbed gravel.
The term of these warranties begins on the date of delivery of the product to the customer and continues until the earlier of:
- the end of the warranty term noted above; or
- the date in which the product(s) is/are removed from the original location of installation; or
- the date in which the original purchases sells or otherwise transfers ownership of the home in which the product(s) was/were originally installed.
Only products purchased from an Authorized Dealer or HomePlus Products Inc. directly are eligible for this warranty. The products must have been installed and operated accordance with the instructions and operating conditions stated in the Owner's Manual.
Customer must register his or her warranty with HomePlus products Inc. within 90 days of original purchase for the warranty to remain valid.
This warranty applies only in Canada and the United States of America.
In the event that a part is deemed defective, the user must immediately inform HomePlus Products Inc. who will furnish a replacement part at no cost to the user. HomePlus' obligation to the customer shall be limited to the replacement of the defective part by prepaid standard freight to the original point of installation. Expedited shipping is available at the discretion and cost of the customer. When required, the return of defective parts to HomePlus is the responsibility of the customer.
This warranty does not cover any labour costs including labour costs related to troubleshooting, repair, installation, or maintenance.
This warranty does not apply to the following situations: misuse; normal wear and tear; neglect; unauthorized repair or damage caused through installation, adaptation, or modification; use in an improper manner or manner inconsistent with the manufacturer's installation, operating, and maintenance instructions; misapplication; wear or deterioration due to environmental conditions; damage occurring during transit; mishandling; improper storage; incorrect supply of water; tampering or alteration; fire, freezing; Act of god; or any cause beyond the control of HomePlus Products Inc.
The original warranty period does not change in the event of part replacement by HomePlus Products Inc.
This warranty is issued exclusively to the original consumer purchaser of record so long as the product remains installed in the original location of installation, and is not transferable.
The provisions of the foregoing warranties are in lieu of any other warranty, whether expressed or implied, written or oral (including any warranty of merchantability or fitness for a particular purpose). HomePlus Product Inc.'s liability arising out of the manufacture, sale, or supplying of the products or their use or disposition, whether based upon warranty, contract, tort, or otherwise, shall not exceed the actual purchase price paid by the authorized distributor or consumer for the product. In no event shall HomePlus Products Inc. be liable to the distributor or any other person or entity for special, incidental, consequential or punitive damages (including, but not limited to, property loss, loss of incomes, or loss of use damages) arising out of the manufacture, sale, or supplying of the products, even if HomePlus Products Inc. has been advised of the possibility of such damages or losses. These warranties are governed by the laws of the Province of British Columbia, Canada, and may change without notice.
To report a warranty problem with your system or request warranty service, please call HomePlus Products Inc. Toll free: 1-866-376-2690
The contaminants or other substances removed by this water treatment device are not necessarily present in your water.
Note: this product is not available in the State of California. CLICK HERE for more information.
