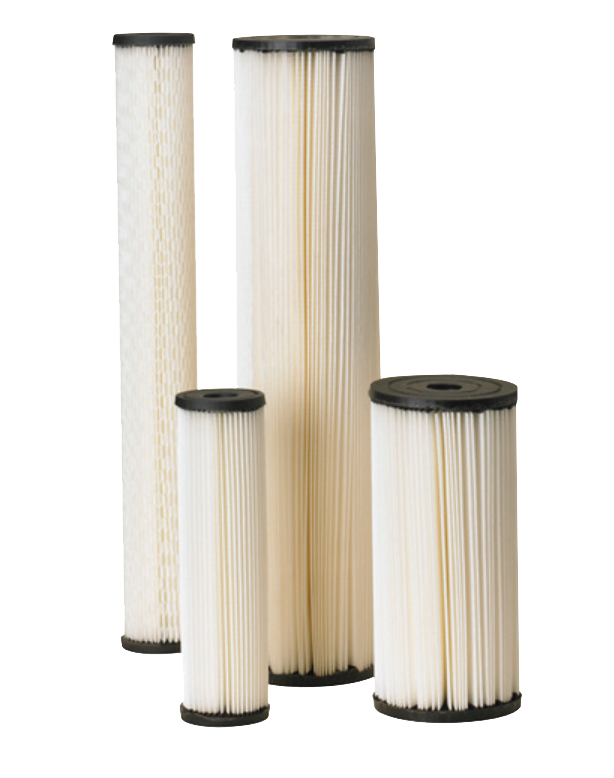

Pentek S1 Series Filter
Also branded as: Pentek / Ametek / Culligan / Kleen Plus / Plymouth Products / Pentair / American Plumber / Bruner / US Filter S1 Series
S1 Series cartridges are
manufactured from a pleated
cellulose media and are designed for
general water filtration purposes.
The media is pleated around a
polypropylene core for added
strength and the ends are immersed
in a thermo-setting vinyl plastisol.
Embedding and sealing each end of
the pleat in this fashion fuses the
three components together forming
a unitized end cap and gasket.
An external netted sheath helps
retain uniform pleat spacing in high
flow and pulsating flow streams.
The overlap seam is sonically
welded to reduce bypass improving
filtration efficiency.
S1 Series cartridges are economically
priced and highly effective at
reducing sediment particles down to
20-microns in size.
- Pleated design maximizes dirt-holding capacity
- Designed for general water filtration purposes
- Recommended for chlorinated water supplies
- Economically priced
- Nominal 20-micron rating
| # |
Model |
Micron
Rating* |
Dimensions |
# per
case |
Price
per case |
Order
a case |
| 15500143 |
Pentek S1 |
20 |
2 5/8" x 9 3/4"
(67mm x 248mm) |
24 |
US$95.76
($3.99 / filter)
Free Shipping
| |
| 15530343 |
Pentek S1-20 |
20 |
2 5/8" x 20"
(67mm x 508mm) |
14 |
US$104.86
($7.49 / filter)
Free Shipping
| |
| 15540543 |
Pentek S1-BB |
20 |
4 1/2" x 9 3/4"
(114mm x 248mm) |
8 |
US$79.88
($9.99 / filter)
Free Shipping
| |
| 15530543 |
Pentek S1-20BB |
20 |
4 1/2" x 20"
(114mm x 508mm) |
6 |
US$101.94
($16.99 / filter)
Free Shipping
| |
* Based on Manufacturer's internal testing.
|
