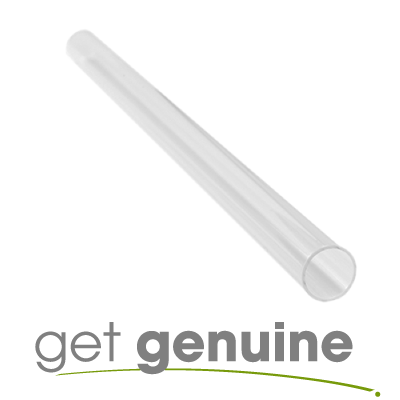

Viqua (Trojan) UVMax Sleeve for Models G, G+ & Pro 10 - # 602974

Viqua UVMax #602974 Sleeve

MSRP: US$71.00
US$55.00
You save: $16.00!!

Choose Option:



(In Stock)
Lowest Price Guaranteed on the Viqua UVMax #602974 Sleeve         Free Shipping on orders over $79
(0 Reviews)
Be the first to write a review.


Found a Lower Price?
Request a Price Beat

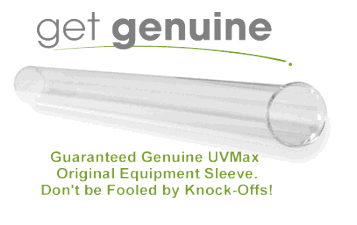

Guaranteed Genuine Trojan UVMax #602974 Original Equipment Sleeve. Don't be Fooled by Knock-Offs!

Viqua UVMax #602974 Sleeve

  • Description
  • Specifications
  • Related Products
  • Installation / Manual
  • Reviews
  • Why Genuine

We are pleased to offer a complete selection of replacement quartz sleeves for all Viqua (Trojan) UVMax ultraviolet (UV) sterilizers.

Viqua (Trojan) UVMax Model #602974 replacement sleeves are designed only for use in Viqua (Trojan) UVMax UV sterilizers. We do not recommend that you attempt to use Trojan replacement sleeves in models made by other manufacturers.

It is critical that only genuine UVMax brand original equipment sleeves be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV sleeves. While they may physically fit in a UVMax system, they are NOT compatible. Testing of a wide range of these sleeves has shown that many do not allow a safe UV dose to pass through the sleeve and may be subject to failure.

UVMax #602974 is the sleeve for the following models:

UVMax #602974 Specifications

Technical Specifications
Part # #602974
Replace Sleeve every 24 Months or as needed
Replacement Lamp <br>Part#:602854

Replacement Lamp
Part#:602854

MSRP: US$245.00
Our Price: US$179.00
You save: $66


- More Info -
Lamp & Sleeve Combo <br>Part#:602850-101

Lamp & Sleeve Combo
Part#:602850-101

MSRP: US$267.00
Our Price: US$199.00
You save: $68


- More Info -

How to change a UVMax #602974 Sleeve

  1. Turn off water supply valve to UV sterilizer
  2. Turn on faucet elsewhere in the home to depressurize the system
  3. Disconnect your UV system from power (unplug unit)
  4. Allow system to cool for 5 - 10 minutes
  5. Follow instructions for removing lamp
  6. Remove the top retaining nut & O-ring
  7. Remove the bottom retaining nut, Spring and loosen the O-ring to drain the water
  8. Remove the quartz sleeve from the UV chamber.
  9. Clean the quartz sleeve with a cloth soaked in CLR, vinegar or some other mild acid and then rinse with water.
  10. Re-insert the quartz sleeve with O-ring(s), Spring, and retaining nut(s).
  11. Hand tighten the retaining nut(s), taking care not to over-tighten.
  12. When service is complete, assemble the prerequisites in the reverse order of disassembly.
  13. Turn on water supply valve
  14. Check for leaks
  15. Close faucet elsewhere in the home

Viqua UVMax #602974 Sleeve Reviews



There are currently no reviews for this product.
Be the first to write a review.
It is critical that only genuine Viqua brand original equipment lamps be used in your system. It has come to our attention that a number of Chinese manufacturers are making knock-off replica UV lamps. While they may physically fit in a Viqua system, they are NOT compatible. Testing of a wide range of these lamps has shown that many do not provide a safe UV dose or offer protection for the stated lamp life, and in some cases have even caused the failure of the ballast/controller and melting of the lamp harness.
