Pentek / Ametek / Culligan DGD Series Water Filters

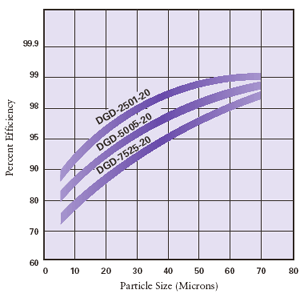

Pentek / Ametek / Culligan DGD Series Water Filters Flow Rate Chart

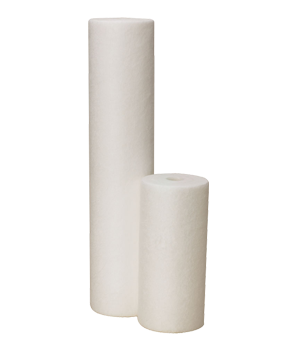

Pentek DGD Series Filter

Also branded as: Pentek / Ametek / Culligan / Kleen Plus / Plymouth Products / Pentair / American Plumber / Bruner / US Filter DGD Series

Manufactured from 100% pure polypropylene, the Pentek DGD series are designed for purity and will not impart color, odor, or taste to the liquid being filtered. Polypropylene is not prone to bacterial attack and provides superior chemical resistance. The DGD Series dual gradiant sediment filters come is sizes to fit our standard 10" and 20" Big BlueŽ filter housings.

The dual gradient nature of the DGD series provides both a pre-filter and final filter in a single cartride. The exterior layer of the filter offers a 50 or 25 micron filtration, working towards a 5 or 1 micron filtration at the center of the filter. This gradiant provides superior dirt holding capacity, holding up to three times the sediment of similar sized sediment filters, and many more times than standard spun or string-wound cartridges.

As most sediment filters simply trap particles on the exterior of the filter, the gradient of the DGD series provides an effective filter depth which is 233% of standard spun-polypropylene or string-wound filters. This extra depth allows for very high sediment reduction efficiency and increased loading capacity, meaning longer lasting filters, and lower pressure drops.

The Pentek DGD Series filters characteristics make them ideally suitable for residential, rural, municipal and commercial applications.

The unique design and performance characteristics of the DGD Series cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.

  • Manufactured from 100% pure polypropylene
  • Designed for purity and chemical compatibility
  • Two separate gradient density layers enhance cartridge performance
  • Three times the dirt-holding capacity of similar sized sediment cartridges









Model Micron
Rating*
Size # per
case
Buy in
USA
Buy in Canada
Why different pricing?
Pentek DGD-2501
Part #15535943
1 4 1/2" x 10"
(114mm x 254mm)
8 US $110.32
($13.79 / filter)
Free Shipping

CDN $130.84
($16.36 / filter)
Free Shipping

Pentek DGD-2501-20
Part #15536043
1 4 1/2" x 20"
(114mm x 508mm)
6 US $140.94
($23.49 / filter)
Free Shipping

CDN $162.99
($27.17 / filter)
Free Shipping

Pentek DGD-5005
Part #15535743
5 4 1/2" x 10"
(114mm x 254mm)
8 US $114.32
($14.29 / filter)
Free Shipping

CDN $135.04
($16.88 / filter)
Free Shipping

Pentek DGD-5005-20
Part #15535843
5 4 1/2" x 20"
(114mm x 508mm)
6 US $149.34
($24.89 / filter)
Free Shipping

CDN $171.81
($28.64 / filter)
Free Shipping

Pentek DGD-7525
Part #15535543
25 4 1/2" x 10"
(114mm x 254mm)
8 US $113.52
($14.19 / filter)
Free Shipping

CDN $134.20
($16.78 / filter)
Free Shipping

Pentek DGD-7525-20
Part #15535643
25 4 1/2" x 20"
(114mm x 508mm)
6 US $146.94
($24.49 / filter)
Free Shipping

CDN $169.29
($28.22 / filter)
Free Shipping

Also marketed as:
Pentek DGD-2501 Pentek DGD-2501-20 Pentek DGD-5005 Pentek DGD-5005-20 Pentek DGD-7525 Pentek DGD-7525-20 Culligan DGD-2501 Culligan DGD-2501-20 Culligan DGD-5005 Culligan DGD-5005-20 Culligan DGD-7525 Culligan DGD-7525-20 Ametek DGD-2501 Ametek DGD-2501-20 Ametek DGD-5005 Ametek DGD-5005-20 Ametek DGD-7525 Ametek DGD-7525-20 US Filter DGD-2501 US Filter DGD-2501-20 US Filter DGD-5005 US Filter DGD-5005-20 US Filter DGD-7525 US Filter DGD-7525-20 Pentair DGD-2501 Pentair DGD-2501-20 Pentair DGD-5005 Pentair DGD-5005-20 Pentair DGD-7525 Pentair DGD-7525-20
* Based on Manufacturer's internal testing.
