Hydronix SDC Sediment Filter

Sediment Depth Filters

Hydronix SDC SERIES 2.5" DIAMETER CARTRIDGES
The Hydronix Series 2.5" diameter SDC cartridge's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters. They are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Hydronix SDC SERIES 4.5" DIAMETER CARTRIDGES
Our 4.5" diameter SDC filters have true multi-stage depth filtration integrated into their design. Utilizing our technology to create 4 separate layers of micron filtration, our outside-in flow allows the outer layer to trap the larger sized particles, resulting in a much lower pressure drop compared to conventional filters. Trapping various sized particles layer-by-layer, our SDC filters provide a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges.

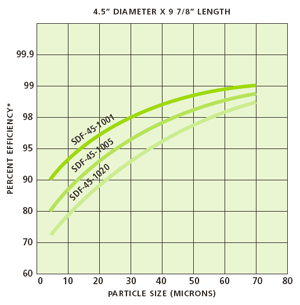

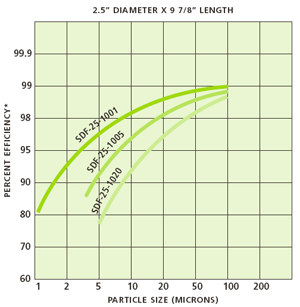

Liquatec SDC Series Water Filters Flow Rate Chart Liquatec SDC Series Water Filters Flow Rate Chart
Tested and Certified
by NSF International to
NSF/ANSI Standard 42 for
material requirements only.

If you find a lower advertised price, we will beat it by 5% of the difference
- just call toll free 1-866-376-2690 - we won't be undersold!

Model Micron Rating* Dimensions PSI change
at flow rate
# per
case
Buy individually Buy a Case
Hydronix SDC-25-0501
Part #14815582
Formerly Liquatec SDF-25-0501
1 2 1/2" x 4 7/8" 0.3 psi
@ 2.0 gpm
80 Not Available
Price: US$124.95

Hydronix SDC-25-0505
Part #14815583
Formerly Liquatec SDF-25-0505
5 2 1/2" x 4 7/8" 0.3 psi
@ 2.0 gpm
80 Not Available
Price: US$124.95

Hydronix SDC-25-0510
Part #14815521
Formerly Liquatec SDF-25-0510
10 2 1/2" x 4 7/8" 0.3 psi
@ 2.0 gpm
80 Not Available
Price: US$124.95

Hydronix SDC-25-1001
Part #14815505
Formerly Liquatec SDF-25-1001
1 2 1/2" x 9 7/8" 0.6 psi
@ 5.0 gpm
40
Price: US$2.20

Price: US$58.95

Hydronix SDC-25-1005
Part #14815502
Formerly Liquatec SDF-25-1005
5 2 1/2" x 9 7/8" 0.4 psi
@ 5.0 gpm
40
Price: US$2.20

5.0 out of 5 stars
(1 review)
Price: US$54.95

Hydronix SDC-25-1010
Part #14815509
Formerly Liquatec SDF-25-1010
10 2 1/2" x 9 7/8" 0.2 psi
@ 5.0 gpm
40 Not Available
Price: US$58.95

Hydronix SDC-25-1020
Part #14815511
Formerly Liquatec SDF-25-1020
20 2 1/2" x 9 7/8" 0.2 psi
@ 5.0 gpm
40 Not Available
Price: US$58.95

Hydronix SDC-25-1050
Part #14815550
Formerly Liquatec SDF-25-1050
50 2 1/2" x 9 7/8" 0.2 psi
@ 5.0 gpm
40 Not Available
Price: US$58.95

Hydronix SDC-25-2001
Part #14815506
Formerly Liquatec SDF-25-2001
1 2 1/2" x 20" 0.6 psi
@ 10 gpm
20 Not Available
Price: US$60.95

Hydronix SDC-25-2005
Part #14815508
Formerly Liquatec SDF-25-2005
5 2 1/2" x 20" 0.4 psi
@ 10 gpm
20
Price: US$4.35

Price: US$57.95

5.0 out of 5 stars
(4 reviews)
Hydronix SDC-25-2010
Part #14815510
Formerly Liquatec SDF-25-2010
10 2 1/2" x 20" 0.3 psi
@ 10 gpm
20 Not Available
Price: US$59.95

Hydronix SDC-25-2020
Part #14815512
Formerly Liquatec SDF-25-2020
20 2 1/2" x 20" 0.3 psi
@ 10 gpm
20 Not Available
Price: US$59.95

Hydronix SDC-25-2050
Part #14815553
Formerly Liquatec SDF-25-2050
50 2 1/2" x 20" 0.3 psi
@ 10 gpm
20 Not Available
Price: US$59.95

Hydronix SDC-25-3001
Part #14815580
Formerly Liquatec SDF-25-3001
1 2 1/2" x 30" 0.4 psi
@ 15 gpm
20 Not Available
Price: US$124.95

Hydronix SDC-25-3005
Part #14815581
Formerly Liquatec SDF-25-3005
5 2 1/2" x 30" 0.3 psi
@ 15 gpm
20 Not Available
Price: US$119.95

Hydronix SDC-25-3010
Part #14815522
Formerly Liquatec SDF-25-3010
10 2 1/2" x 30" 0.3 psi
@ 15 gpm
20 Not Available
Price: US$124.95

Hydronix SDC-25-3025
Part #14815523
Formerly Liquatec SDF-25-3025
25 2 1/2" x 30" 0.3 psi
@ 15 gpm
20 Not Available
Price: US$124.95

Hydronix SDC-25-3075
Part #14815524
Formerly Liquatec SDF-25-3075
75 2 1/2" x 30" 0.3 psi
@ 15 gpm
20 Not Available
Price: US$124.95

Hydronix SDC-25-4001
Part #14815590
Formerly Liquatec SDF-25-4001
1 2 1/2" x 40" 0.3 psi
@ 20 gpm
20 Not Available
Price: US$159.95

Hydronix SDC-25-4005
Part #14815591
Formerly Liquatec SDF-25-4005
5 2 1/2" x 40" 0.3 psi
@ 20 gpm
20 Not Available
Price: US$153.95

Hydronix SDC-25-4010
Part #14815525
Formerly Liquatec SDF-25-4010
10 2 1/2" x 40" 0.3 psi
@ 20 gpm
20 Not Available
Price: US$159.95

Hydronix SDC-25-4025
Part #14815592
Formerly Liquatec SDF-25-4025
25 2 1/2" x 40" 0.3 psi
@ 20 gpm
20 Not Available
Price: US$159.95

Hydronix SDC-25-4050
Part #14815526
Formerly Liquatec SDF-25-4050
50 2 1/2" x 40" 0.3 psi
@ 20 gpm
20 Not Available
Price: US$159.95

Hydronix SDC-45-1001
Part #14815556
Formerly Liquatec SDF-45-1001
1 4 1/2" x 9 7/8" 1 psi
@ 10 gpm
12 Not Available
Price: US$112.95

Hydronix SDC-45-1005
Part #14815557
Formerly Liquatec SDF-45-1005
5 4 1/2" x 9 7/8" 1 psi
@ 10 gpm
12
Price: US$10.60

Price: US$105.95

5.0 out of 5 stars
(1 review)
Hydronix SDC-45-1010
Part #14815558
Formerly Liquatec SDF-45-1010
10 4 1/2" x 9 7/8" 1 psi
@ 10 gpm
12
Price: US$11.20

Price: US$111.95

4.0 out of 5 stars
(1 review)
Hydronix SDC-45-1020
Part #14815559
Formerly Liquatec SDF-45-1020
20 4 1/2" x 9 7/8" 1 psi
@ 10 gpm
12 Not Available
Price: US$111.95

Hydronix SDC-45-1050
Part #14815560
Formerly Liquatec SDF-45-1050
50 4 1/2" x 9 7/8" 1 psi
@ 10 gpm
12 Not Available
Price: US$111.95

Hydronix SDC-45-2001
Part #14815563
Formerly Liquatec SDF-45-2001
1 4 1/2" x 20" 1 psi
@ 20 gpm
6 Not Available
Price: US$111.95

5.0 out of 5 stars
(1 review)
Hydronix SDC-45-2005
Part #14815564
Formerly Liquatec SDF-45-2005
5 4 1/2" x 20" 1 psi
@ 20 gpm
6
Price: US$21.19

Price: US$105.95

Hydronix SDC-45-2010
Part #14815565
Formerly Liquatec SDF-45-2010
10 4 1/2" x 20" 1 psi
@ 20 gpm
6
Price: US$22.39

Price: US$111.95

5.0 out of 5 stars
(1 review)
Hydronix SDC-45-2020
Part #14815566
Formerly Liquatec SDF-45-2020
20 4 1/2" x 20" 1 psi
@ 20 gpm
6 Not Available
Price: US$111.95

5.0 out of 5 stars
(1 review)
Hydronix SDC-45-2050
Part #14815567
Formerly Liquatec SDF-45-2050
50 4 1/2" x 20" 1 psi
@ 20 gpm
6 Not Available
Price: US$111.95

* Based on Manufacturer's internal testing.
