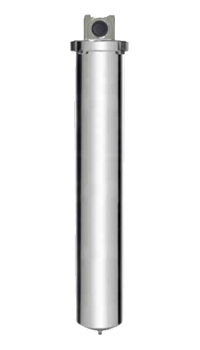

Harmsco FSSS-2A-222 Single Cartridge Filter Housing

Harmsco 20 Inch FSSS-2A-222 <br>w/ 1 Inch Inlet/Outlet

Harmsco 20 Inch FSSS-2A-222
w/ 1 Inch Inlet/Outlet

MSRP: US$991.00
Our Price: US$515.00
You save: $476.00



(In Stock)

(0 Reviews)
Be the first to write a review.


Found a Lower Price?
Request a Price Beat
Free Shipping on 20 Inch FSSS-2A-222 <br>w/ 1 Inch Inlet/Outlet

Lowest Price Guaranteed on the Harmsco 20 Inch FSSS-2A-222 <br>w/ 1 Inch Inlet/Outlet

Part #:FSSS-2A-222

Arguably the easiest of Harmsco's housings to install, the FSSS series offers an effective solution for filtration needs under 30 GPM. This housing's options allow one to choose from one of three different cartridge end configurations and between 304 and 316 stainless steel.

A chosen housing for reverse osmosis prefiltration, high purity water, and food and beverage filtration (among many other applications), this electropolished line also features a double o-ring compression seal which effectively promotes positive pressure and makes changing cartridges a simple task.

  • low pressure loss
  • convenient inline design to simplify installation
  • designed with a 1/4" NPT drain
  • housing comes with wrench and mounting bracket

Features & Specifications:
Material:316 Stainless Steel
End Configuration:222/Flat
Inlet / Outlet:1"
Temperature Rating:up to 250F (121C)
Maximum Pressure:300 PSI
Dimensions:23" x 4.06" (584 x 103 mm)
Initial Pressure Drop:1 PSI @ 30 gpm (0.07 bar @ 114 Lpm)
O-Ring:EPDM
