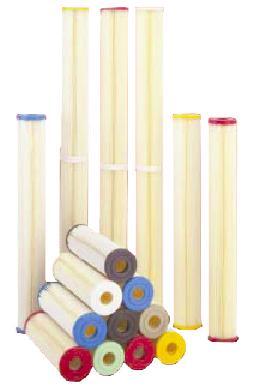

Harmsco 801 Series Replacement Filter Cartridges

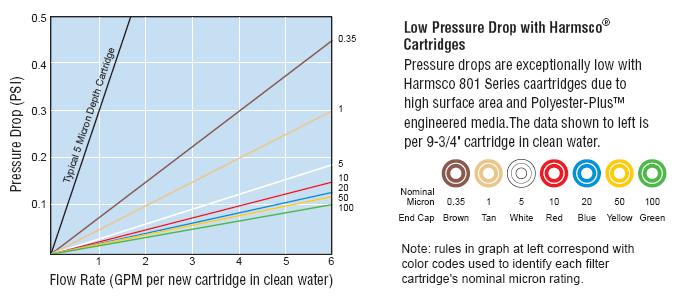

NSF certified filters with extremely low pressure drops

Harmsco 801 Series filters are highly efficient cartridges made of pleated Polyester-Plus™ filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability and the lowest cost per gallon filtered.

Features

Micron Rating % Removal
0.35 99.9%
1 99.9%
5 99.9%
10 99.5%
20 98.5%


Specifications
Filter Media: Polyester-Plus™
End Caps: Plastisol or Urethane (pliable)
Center Tubes: ABS, PP, OR, PVC
Temperature: 140°F (standard cartridges)
200°F (high temp. cartridges)
Max Flow-Rate: 4-6 GPM
pH: 3 to 11
Surface Area: 6 sq. ft. per 9-3/4" length (approx.)
Dimensions: 2-3/4" O.D.; 1-1/16" I.D.
Harmsco 801 Series Replacement Filter Cartridge Data

Harmsco 801 Series cartridges offer approximately six square feet of media per 9-3/4" length.


If you find a lower advertised price, we will beat it by 5% of the difference
- just call toll free 1-866-376-2690 - we won't be undersold!

Model Micron Type Dimensions
Length x O.D.
End Cap # per
case
Buy a Case
Harmsco 801-0.35
Part #17080102
0.35 Single
Regular
9 3/4" x 2 3/4" Brown 24
US$276.95

Harmsco 801-1
Part #17080090
1 Single
Regular
9 3/4" x 2 3/4" Tan 24
US$204.95

Harmsco 801-5
Part #17080107
5 Single
Regular
9 3/4" x 2 3/4" White 24
US$177.95

Harmsco 801-10
Part #17080095
10 Single
Regular
9 3/4" x 2 3/4" Red 24
US$177.95

Harmsco 801-20
Part #17080101
20 Single
Regular
9 3/4" x 2 3/4" Blue 24
US$177.95

Harmsco 801-50
Part #17080114
50 Single
Regular
9 3/4" x 2 3/4" Yellow 24
US$177.95

Harmsco 801-100
Part #17080096
100 Single
Regular
9 3/4" x 2 3/4" Green 24
US$177.95

Harmsco 801-1-HT
Part #17080099
1 Single
High Temp.*
9 3/4" x 2 3/4" Tan 24
US$225.95

Harmsco 801-5-HT
Part #17080122
5 Single
High Temp.*
9 3/4" x 2 3/4" White 24
US$196.95

Harmsco 801-20-HT
Part #17080106
20 Single
High Temp.*
9 3/4" x 2 3/4" Blue 24
US$196.95

Harmsco 801-50-HT
Part #17080120
50 Single
High Temp.*
9 3/4" x 2 3/4" Yellow 24
US$196.95

Harmsco 921-0.35
Part #17080137
0.35 Double 19 1/2" x 2 3/4" Brown 24
US$499.95

Harmsco 921-1
Part #17080138
1 Double 19 1/2" x 2 3/4" Tan 24
US$399.95

Harmsco 921-5
Part #17080141
5 Double 19 1/2" x 2 3/4" White 24
US$339.95

Harmsco 921-10
Part #17080139
10 Double 19 1/2" x 2 3/4" Red 24
US$339.95

Harmsco 921-20
Part #17080140
20 Double 19 1/2" x 2 3/4" Blue 24
US$339.95

Harmsco 921-50
Part #17080142
50 Double 19 1/2" x 2 3/4" Yellow 24
US$339.95

Harmsco 931-0.35
Part #17080146
0.35 Triple 29 1/4" x 2 3/4" Brown 24
US$869.95

Harmsco 931-1
Part #17080147
1 Triple 29 1/4" x 2 3/4" Tan 24
US$629.95

Harmsco 931-5
Part #17080315
5 Triple 29 1/4" x 2 3/4" White 24
US$599.95

Harmsco 931-10
Part #17080148
10 Triple 29 1/4" x 2 3/4" Red 24
US$599.95

Harmsco 931-20
Part #17080149
20 Triple 29 1/4" x 2 3/4" Blue 24
US$599.95

Harmsco 931-50
Part #17080150
50 Triple 29 1/4" x 2 3/4" Yellow 24
US$599.95

Harmsco 801-0.35-10
Part #17080103
0.35 10" 10" x 2 3/4" Brown 24
US$276.95

Harmsco 801-1-10
Part #17080091
1 10" 10" x 2 3/4" Tan 24
US$204.95

Harmsco 801-5-10
Part #17080109
5 10" 10" x 2 3/4" White 24
US$177.95

Harmsco 801-20-10
Part #17080085
20 10" 10" x 2 3/4" Blue 24
US$177.95

Harmsco 801-50-10
Part #17080115
50 10" 10" x 2 3/4" Yellow 24
US$177.95

Harmsco 801-0.35-20
Part #17080087
0.35 20" 20" x 2 3/4" Brown 24
US$499.95

Harmsco 801-1-20
Part #17080092
1 20" 20" x 2 3/4" Tan 24
US$399.95

Harmsco 801-5-20
Part #17080132
5 20" 20" x 2 3/4" White 24
US$339.95

Harmsco 801-20-20
Part #17080133
20 20" 20" x 2 3/4" Blue 24
US$339.95

Harmsco 801-50-20
Part #17080116
50 20" 20" x 2 3/4" Yellow 24
US$339.95

Harmsco 801-0.35-30
Part #17080088
0.35 30" 30" x 2 3/4" Brown 24
US$869.95

Harmsco 801-1-30
Part #17080093
1 30" 30" x 2 3/4" Tan 24
US$629.95

Harmsco 801-5-30
Part #17080111
5 30" 30" x 2 3/4" White 24
US$599.95

Harmsco 801-20-30
Part #17080086
20 30" 30" x 2 3/4" Blue 24
US$599.95

Harmsco 801-50-30
Part #17080117
50 30" 30" x 2 3/4" Yellow 24
US$599.95

Harmsco 801-0.35-40
Part #17080089
0.35 40" 40" x 2 3/4" Brown 24
US$1,049.95

Harmsco 801-1-40
Part #17080094
1 40" 40" x 2 3/4" Tan 24
US$789.95

Harmsco 801-5-40
Part #17080113
5 40" 40" x 2 3/4" White 24
US$699.95

Harmsco 801-20-40
Part #17080104
20 40" 40" x 2 3/4" Blue 24
US$699.95

Harmsco 801-50-40
Part #17080118
50 40" 40" x 2 3/4" Yellow 24
US$699.95



* the High Temp. cartridges are rated up to 200°F.
