ClearPlus WH KDF - Whole House KDF &
Granular Activated Carbon (GAC) Filter Package

ClearPlus WH-KDF Whole House KDF-55 / GAC Filter Package

ClearPlus WH-KDF Whole House KDF-55 / GAC Filter Package

MSRP: US$233.94
Our Price: US$179.95
You save: $53.99



(In Stock)

(0 Reviews)
Be the first to write a review.


Found a Lower Price?
Request a Price Beat
Free Shipping on WH-KDF Whole House KDF-55 / GAC Filter Package

Lowest Price Guaranteed on the ClearPlus WH-KDF Whole House KDF-55 / GAC Filter Package

The WH-KDF whole house filter package features dual stage filtration for a wide range of common contaminants that affect the clarity, taste, and odor of residential water. This system features Hydronix's unique multi-depth poly sediment filter which removes dirt, sediment, rust particles, and other particulates down to a level of 10 microns thereby protecting the carbon filter and preserving its capacity. This filter uses the entire depth of its media by trapping the largest sediment particles on the outside of the filter, then gradually stepping down the size of particles it will reject as the water moves closer to the core of the filter. The outer layer is rated at 75 microns. The subsequent layers are rated at 50 microns, 25 microns, and finally 10 microns. The result is longer filter life and higher flow rates (less pressure drop). The polypropylene media is highly resistant to bacteria, making this an excellent choice for well, lake, and stream water treatment applications, in addition to city water.

The stage 2 multi-media filter utilizes both KDF-55 and granular activated carbon (GAC) to substantially reduce chlorine, bad tastes and odors, as well as a wide variety of heavy metals including copper, iron (recommended for low levels only), and lead. It has a nominal filtration rating of 5 microns. It features a greater volume of KDF-55 media that most competitor's filters. This filter allows water to enter at one end and pass through the entire length of the multi-media bed thereby maximizing contact time and contaminant removal before exiting the other end (upflow design). Accordingly, somewhat higher contaminant removal rates can generally be achieved as compared to most radial flow GAC or carbon block filters, although the filter life will be a bit shorter.

Applications & Suitability:

The WH-KDF is a popular general purpose whole house water filter package where low levels of heavy metals may also be present due to old plumbing or slightly acidic water. It is well suited to sediment and particulate removal as well as the reduction of chlorine, chlorine disinfection bi-products like trihalomethanes (THM's), a wide range of volatile organic compounds, and other contaminants responsible for bad tastes and odors. Low concentrations of many heavy metals including copper zinc iron, and lead can also be removed with the WH-KDF under typical operating conditions. The WH-KDF is an excellent choice for well water, lake water, stream water, and municipal (city) water treatment applications as KDF media it has a mild bacteriostatic effect which inhibits bacterial growth in the filter. For best results, we recommend a maximum flow rate of about 4 gallons per minute, which is sufficient for an average residential application.

Note: Some municipalities disinfect their water with chloramine instead of chlorine. We recommend that you confirm which disinfectant your city uses to treat your water supply so you can ensure that you choose the best filter for your needs. If your water supply is treated with chloramine, we highly recommend that you consider the WH Chloramine filter which uses a special catalytic carbon to enhance chloramine removal.



Why choose the WH-KDF Whole House KDF / Granular Activated Carbon Package?

  • addition of KDF55 media adds versatility to assist in removal of low concentrations of many heavy metals
  • upflow design maximizes contact time between contaminants and media to enhance contaminant removal rates
  • KDF-55 media inhibits bacterial contamination of filter so this filter is an excellent choice on all well or surface (lake or stream) water sources
  • we use only the highest quality heavy duty filter housings with large diameter inlet and outlet for less pressure drop and better flow dynamics
  • housings and sediment pre-filter are NSF Certified (Standard 42 for material requirements)
  • we use standard filter sizes so you will always be able to obtain replacement filters for your system
  • many competitors use small 2.5" x 10" filters in their whole house filter systems, resulting in poor water pressure, short filter life, and less than optimal flow characteristics - we use filters with much greater surface area to maximize contaminant removal, improve water pressure and flow characteristics, and extend filter life so you have less maintenance to do!
  • sturdy powder-coated steel mounting bracket and spanner wrench included!
  • great pricing on system packages are replacement filters - guaranteed best prices in USA and Canada on all replacement filters purchased by the case!ase!

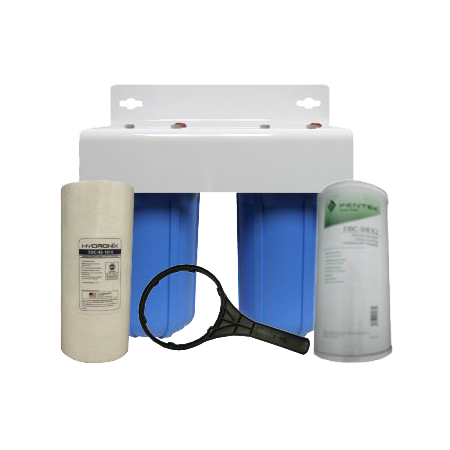

Included in package:

  • two (2) heavy-duty Pentek Big Blue 10" filter housings (1" NPT) w/ pressure relief buttons
  • one (1) powder-coated mounting bracket and related screws
  • one (1) Hydronix SDC-45-1010 multi-gradient 10 micron sediment filter cartridge
  • one (1) Pentek DBC-10EX2 5 micron KDf-55 / GAC carbon cartridge filter
  • one (1) spanner wrench
  • one (1) 1" brass housing coupler used to join the 2 filter housings
  • one (1) roll of Teflon tape
Features & Specifications:
Micron Rating: 5 microns nominal
Max. Recommended Flow Rate
(Gallons per Minute):
6 GPM (23 LPM)
Pressure Drop @ Maximum Flow Rate: < 7 PSI
Housing: Two Heavy Duty Pentek Big Blue Housings (10")
Inlet/Outlet: 1" NPT (female)
Replacement Sediment Pre-Filter: Hydronix SDC-45-1010
Replacement KDF-55/Carbon Filter: Pentek DBC-10EX2
Estimated KDF-55/Carbon Filter Life:* 20,000 gallons (75,700 L)
Recommended Operating Temp. Range: 40-100F (4.4 to 37C)
Maximum Recommended Water Pressure: 100 PSI (6.9 bar)

* Many factors can affect filter life including contaminant levels, flow rates, etc. Estimated filter life based on 2ppm free available chlorine (FAC), 2 GPM continuous flow, and minimum 90% chlorine reduction.

Recommended Uses: ratings scale
Sediment, Dirt, Rust Particles, Turbidity
Chlorine, THMs, Bad Tastes & Odors
Volatile Organic Chemicals (VOCs)*
Heavy Metals (lead, iron, copper, zinc) to
* No carbon filter can remove all volatile organic compounds, especially at high flow rates, however, this filter will remove many volatile organic compounds under recommended operating conditions to improve taste and odor.


NSF Certified Housings and Filters!


Download Owners Manual for WHC-KDF KDF-55/GAC Filter
Download WH-KDF Owner's
Manual & Installation Guide

Adobe PDF Format

Options, Accessories and Replacement Parts

Pentek KDF/GAC Whole House Filter <br>Single Filter

Pentek KDF/GAC Whole House Filter
Single Filter

MSRP: US$79.84
Our Price: US$44.50
You save: $35.34


- More Info -
Pentek KDF/GAC Whole House Filter <br>Two Filters

Pentek KDF/GAC Whole House Filter
Two Filters

MSRP: US$159.68
Our Price: US$93.95
You save: $65.73


- More Info -
Pentek KDF/GAC Whole House Filter <br>Case of 8 Filters

Pentek KDF/GAC Whole House Filter
Case of 8 Filters

MSRP: US$479.04
Our Price: US$305.34
You save: $173.7


- More Info -
Big Blue Housing O-Ring <br> #151122

Big Blue Housing O-Ring
#151122

MSRP: US$7.61
Our Price: US$4.99
You save: $2.62


- More Info -
Pentek SW-3 Spanner Wrench <br> #150296

Pentek SW-3 Spanner Wrench
#150296

MSRP: US$4.78
Our Price: US$3.49
You save: $1.29


- More Info -

Please Note:
The contaminants or other substances removed by this water treatment device are not necessarily present in your water.
