 The WH6 iron / hydrogen sulfide reduction filter contains a combination of KDF85 media and coconut shell
activated carbon. The KDF85 effectively reduces dissolved iron and hydrogen sulfide odor over a wider pH
range than possible with standard oxidation filters such as manganese greensand, thereby protecting your
plumbing system including toilets, bath tubs and showers, and appliances such as clothes washers and
dishwashers, from unsightly staining and odor. The activated carbon removes organic contaminants to
substantially improving water clarity, taste, and odor. It does NOT add any harmful chemicals to the water,
making it completely safe for drinking water applications.
Advantages:
|
 fraction of the cost of competitive iron removal systems
easy to replace cartridge - no media regeneration necessary!
NO backwashing required!
effective over a wide pH range of 6.5 to 8.5
also removes manganese and hydrogen sulfide (rotten egg smell)
does not add harmful bi-products to your drinking water
prevents staining of laundry and plumbing system including you shower and tub
relatively long filter life - cost effective long-term operation
simple installation
small size (only about 8 inches by 24 inches!) - save valuable floor space!
will not harm your septic system
filter features built-in granular activated carbon post-filter for the removal of a wide range of organic contaminants and better tasting water.
filter media inhibits bacteria growth (bacteriostatic)
|
Application: This system should be employed where low to moderate ferrous (dissolved) iron or hydrogen sulfide
contamination is known or expected (hydrogen sulfide produces a distinct rotten egg / sulfur odor). This filter is most effective where iron and hydrogen sulfide levels are less than 5 ppm. Best contaminant removal rates are achieved where the pH is between 6.5 and 8.5 and where the water contains some dissolved oxygen. This filter will also remove ferric iron through mechanical filtration, although a sediment filter may be a more cost effective choice. If your pH level is 7.0 or higher, you should consider our WH5 iron / hydrogen sulfide reduction filter which uses a different filter media - the replacement cartridges are significantly cheaper.
The life of the filter cartridge depends on the contamination level (iron, manganese and hydrogen sulfide levels) and amount of water consumed on a daily basis. The expected filter life for a typical residential application is about 20,000 gallons (75,500 L). For best results and longest filter-life, a sediment pre-filter such as the WH1 or WH1B+ is recommended.
What types of contaminants are you dealing with?
| Problem |
Likely Cause |
| rusty red or brown staining of fixtures or laundry and/or your water has a metallic taste |
excess iron |
| black staining of fixtures or laundry |
excess manganese |
| rotten egg smell from water |
Hydrogen sulfide (H2S) |
How it Works: KDF85 media acts as a catalyst to change soluble iron (ferrous) cations into insoluble ferric hydroxide which becomes trapped in the filter. The hydrogen sulfide is converted into an insoluble sulfide precipitate which is then similarly trapped and filtered. Ferric iron is removed by mechnical filtration.
| Specifications & Operating Conditions:
|
| Housing Material
| Polypropylene |
| Maximum Recommended Flow Rate
| 3 Gallons Per Minute (11 LPM) |
| Recommended Operating Temp. Range:
| 40-100°F (4.4 to 37°C) |
| Maximum Recommended Pressure
| 90 PSI (6.2 bar) |
| Required pH level:
| 6.5 to 8.5 |
| Recommended Dissolved Oxygen :
| Iron level in ppm x 0.6 |
| Maximum Recommended Iron Level:
| 5 ppm (mg/l) |
CLICK HERE for WH6 KDF85 Iron / Hydrogen Sulfide Reduction Filter
Product Brochure incl. Installation Instructions
Recommended Pre-filter: While not essential, the installation of a sediment pre-filter in advance of the WH5 iron / hydrogen sulfide reduction filter system will extend the life of the iron reduction cartridge by preventing sediments and oxidized iron particles (ferric iron) from clogging the filter before its capacity is reached. Our WH1, WH1-HF,WH1B+, or WH1B+-HF whole house sediment filter packages are excellent choices as a pre-filter. You can read more about these products by visiting our Whole House Sediment Water Filter products page.
WH6 KDF85 Iron / Hydrogen Sulfide
Reduction Filter Package
|
Includes:
• 1 heavy-duty Big Blue 20" filter housing (1" NPT)
• 1 stainless steel mounting bracket and related screws

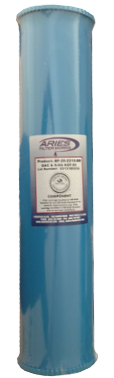

• 1 KDF85/GAC iron reduction filter cartridge
• 1 spanner wrench
|
US$299.95 + $14.95 shipping
Note: If your pH level is 7.0 or higher, you should consider our WH5 iron / hydrogen sulfide reduction filter which uses a different filter media - the replacement cartridges are significantly cheaper.
Order WH6 with an extra KDF85/GAC iron reduction filter cartridge - save!
US$479.95 + $19.95 shipping
|
|
